Robotic Frame Removal and Milling for Cell-Cast Acrylic Sheet
- Justin Eckhardt
- 17 hours ago
- 5 min read
Cell-cast acrylic sheet is made the slow way: liquid monomer cured between glass plates inside a steel casting frame. The payoff is optical-grade sheet. The price is a back end of the process that, at one industrial castings manufacturer we worked with, was almost entirely manual. Framed castings around a hundred inches tall had to be inspected, separated from their frames, edge-machined, sanded, graded, labeled, and stacked. Every step meant people wrestling heavy, fragile, statically charged sheet.

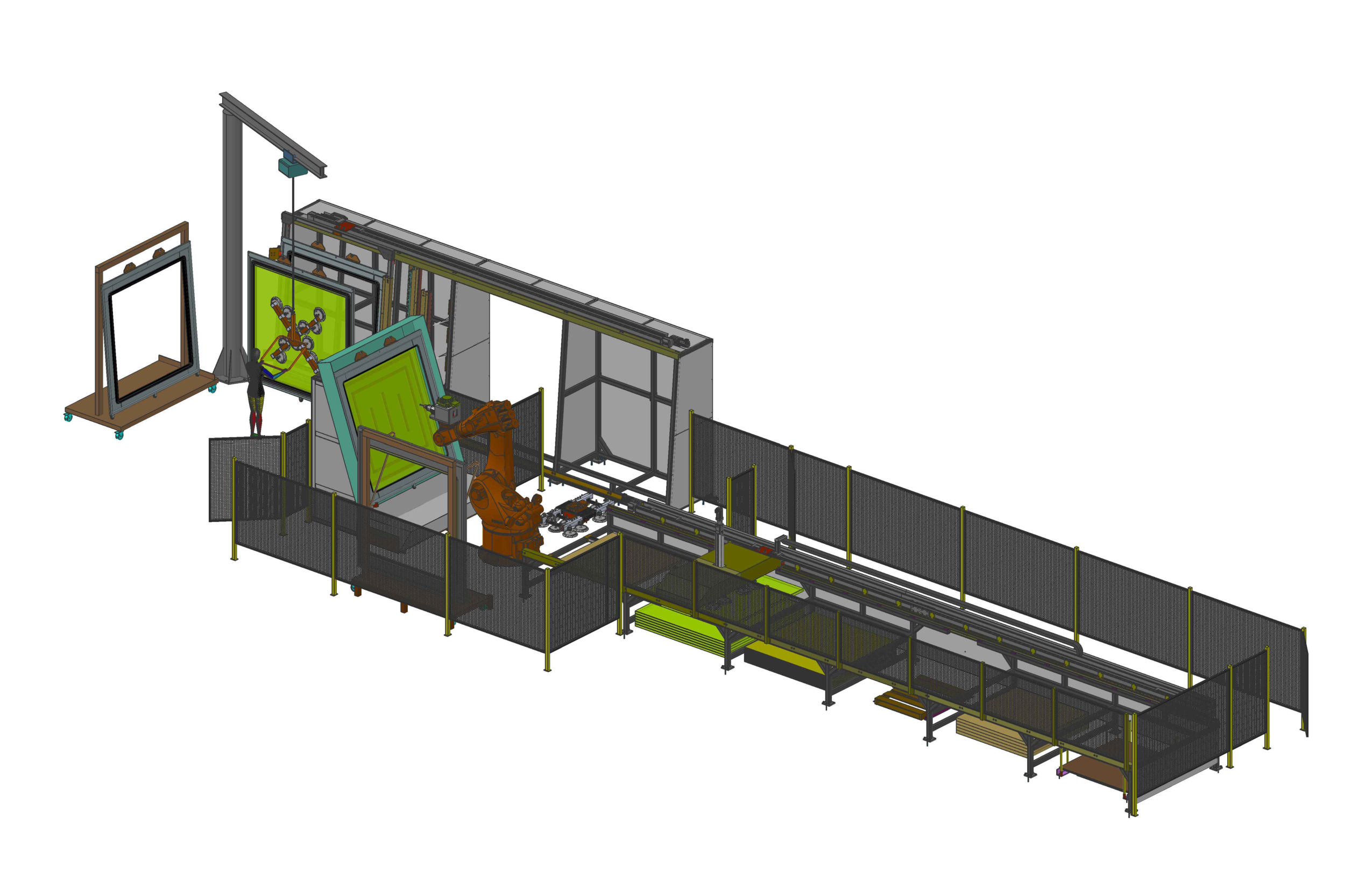

We designed and built the automation for that back end as two connected systems: a vertical post-casting inspection line, and a robotic frame removal and milling cell. This article walks through both, and through the parts of the job the proposal never mentions: chips, static, vacuum cup marks, and a video file named THE CRASH.
Two systems, one line
The inspection line receives framed castings from the upstream washer and conveys them vertically, edge-on, through scanning and manual inspection stations before handing them to the robot cell. Vertical transport is what keeps a line for hundred-inch sheet inside a sane building footprint, but it raises the stakes on guiding and retention hardware: the product is always one bad pick from being a very expensive guillotine. Long-travel Parker HPLA belt-driven linear actuators, one at 38 feet of travel and one at 22, move the frames between stations under Allen-Bradley Kinetix 5500 servo drives and VPL motors.
At the load station an operator picks framed castings off carts with an articulated vacuum lifter hung from a Gorbel jib crane. Identity follows the frame through the line by barcode, so inspection results, thickness data, and grade travel with the physical sheet all the way to marking and stacking.
Inspecting transparent material
Finding defects in optically clear sheet is its own discipline. Front lighting mostly shows you reflections of your own fixture. The scanning station instead runs vertically mounted Keyence XG-HL08M 8192-pixel line-scan cameras against a 96-inch Metaphase Exolight2 red LED backlight in a through-beam arrangement, with the acquisition encoder-triggered from the transport axis so belt-speed variation cannot distort the image geometry. Surface and internal defects show up as shadows; the system logs each defect's position, size, and grade.
Thickness is sampled rather than fully mapped: three Keyence LK-G402 CCD laser displacement sensors measure discrete points across the casting. Full-coverage thickness metrology on sheet this size is a very different budget, and the honest move is to write the sampling plan into the proposal in plain language, which we did. A pair of Keyence SJ-H series ionizer bars kills the static charge before scanning, because a charged sheet attracts exactly the dust you are trying not to count as defects.
The robot cell
The machining cell is built around a KUKA KR600 six-axis robot on a KRC4 controller. On the wrist, behind a SCHUNK tool changer, ride two end effectors: an 11.5 HP PDS HSK-F63 electric spindle driven by a Yaskawa V1000 VFD on EtherNet/IP, and a Schmalz vacuum gripping system for product transfers. The spindle pulls HSK-F63 holders with ER40 collets from a passive fork rack, so one robot covers the whole sequence: rough cut, finish cut, front and back chamfer, and a final sanding pass with a compliant abrasive head that floats on the surface instead of gouging it.
The casting is held for machining on a vacuum table raised and lowered by servo-driven Z axes, and the table is built over a granite flat. Steel weldments alone will not hold a machining datum across a table this large; granite will. The same cell separates the emptied casting frame from the sheet and stacks frames vertically on designed carts at a docking station, five carts in rotation, which quietly removes the worst manual lifts in the whole operation. Finished sheets travel by overhead vacuum hoist to four scissor-lift stacking stations, graded stacks separated by cardboard slip sheets pulled from a fifth station.
Chips, dust, and static
Machining acrylic does not make nice cast-iron chips that fall on the floor. It makes stringy curls and fine dust that charge statically and cling to everything, including the optical surface you are protecting. Containment was designed as a subsystem in its own right: shrouding around the cut zone, vacuum reclamation ports on the end effector, collection tubs under the vacuum table, an auger conveyance for waste, and an air-blast nozzle for cleanup passes. A mist system cools the cutter, because acrylic gums and melts long before it dulls a tool.
Vacuum handling of finished polymer sheet has its own failure mode: the cups themselves. Soft product plus aggressive cups or too much vacuum leaves permanent marks. We qualified cup material, diameter, and vacuum level on scrap before the system ever touched sellable sheet, and the project archive keeps a folder of vacuum damage photos from that qualification as a reference for the next job.
Controls and safety
An Allen-Bradley CompactLogix PLC runs the machine logic, with a PC-based cell controller on InTouch supervising the PLC, robot, vision, and displacement systems, and owning data logging and the defect file interface. Defining that interface early, as a plain file with X, Y, size, and grade per defect, is what let the inspection line and the robot cell be commissioned as separable systems.
Safety is layered: perimeter mesh guarding, Contrinex light curtain pairs at the product pass-through openings, cable-pull e-stop switches along the walkable runs, and a Phoenix Contact safety relay architecture that the PLC monitors but does not own. Forklift interaction points at the stackers get their own beam sensing so transport motion cannot run while a fork is in the zone.
Commissioning, honestly
The cell went through factory acceptance at our Auburn shop and site acceptance on the production floor in 2017. The commissioning archive is a stack of videos: rough cut, finish cut, chamfer passes, honing, cart loading. It also contains a file named THE CRASH. Robot cells with this much reach and payload eventually earn a file with that name during program development, and we keep ours on purpose. It is the permanent argument for the unglamorous software guard rails: work envelope limits, soft limits around fixtures, and reduced-speed proofing of every new path before the spindle runs at full feed.
What would we do differently today? The architecture holds up. The sampled thickness plan and the separable two-system scope are choices we still make. The main upgrades a decade of vision work would buy: deep-learning defect classification behind the line-scan acquisition, and more aggressive data capture from day one, because the defect database becomes the most valuable thing the line produces.
